| Feature |
Technical Specifications |
| Processor |
Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor |
| Memory |
• 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s |
| • Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max |
| • Supports registered ECC DDR4 DIMMs only |
| Storage controllers |
• Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N |
| • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB |
| • Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB |
| • External PERC (RAID): PERC H840, HBA355E |
| Drive Bays |
Front bays: |
| • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB |
| • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB |
| • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB |
| • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB |
| Rear bays: |
| • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB |
| • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
| Power Supplies |
• 700 W Titanium HLAC/240 mixed mode |
| • 800 W Platinum AC/240 mixed mode |
| • 1100 W Titanium AC/240 mixed mode |
| • 1100 W DC -48 - -60 V |
| • 1400 W Platinum AC/240 mixed mode |
| • 1800 W Titanium HLAC/240 mixed mode |
| • 2400 W Platinum AC/240 mixed mode |
| • 2800 W Titanium HLAC/240 mixed mode |
| Cooling Options |
Air cooling, optional processor liquid cooling |
| Fans |
• Standard fan/High performance SLVR fan/High performance GOLD fan |
| • Up to six hot plug fans |
| Dimensions |
• Height – 86.8 mm (3.41 inches) |
| • Width – 482 mm (18.97 inches) |
| • Depth – 758.3 mm (29.85 inches) - without bezel |
| 772.14 mm (30.39 inches) - with bezel |
| Form Factor |
2U rack server |
| Embedded Management |
• iDRAC9 |
| • iDRAC Service Module |
| • iDRAC Direct |
| • Quick Sync 2 wireless module |
| Bezel |
Optional LCD bezel or security bezel |
| OpenManage Software |
• OpenManage Enterprise |
| • OpenManage Power Manager plugin |
| • OpenManage SupportAssist plugin |
| • OpenManage Update Manager plugin |
| Mobility |
OpenManage Mobile |
| Integrations and Connections |
OpenManage Integrations |
OpenManage Connections |
| • BMC Truesight |
• IBM Tivoli Netcool/OMNIbus |
| • Microsoft System Center |
• IBM Tivoli Network Manager IP Edition |
| • Red Hat Ansible Modules |
• Micro Focus Operations Manager |
| • VMware vCenter and vRealize Operations Manager |
• Nagios Core |
|
• Nagios XI |
| Security |
• Cryptographically signed firmware |
| • Secure Boot |
| • Secure Erase |
| • Silicon Root of Trust |
| • System Lockdown (requires iDRAC9 Enterprise or Datacenter) |
| • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Embedded NIC |
2 x 1 GbE LOM |
| Network Options |
1 x OCP 3.0 (x8 PCIe lanes) |
| GPU Options |
Up to two double-width 300 W, or three single-width 150 W, or six single-width 75 W accelerators |
| Ports |
Front Ports |

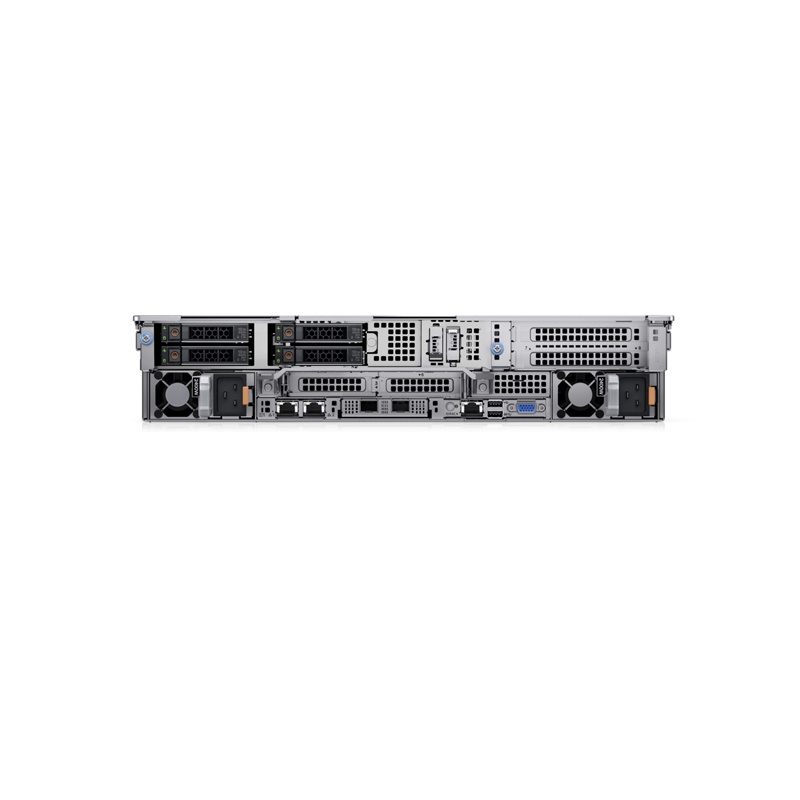

Rear Ports |
| • 1 x Dedicated iDRAC Direct micro-USB |
• 1 x USB 2.0 |
| • 1 x USB 2.0 |
• 1 x Serial (optional) |
| • 1 x VGA |
• 1 x USB 3.0 |
|
• 2 x RJ-45 |
|
• 1 x VGA (optional for liquid cooling configuration) |
| Internal Ports |
| • 1 x USB 3.0 |
| PCIe |
Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules |
| Feature |
Technical Specifications |
| Operating System and Hypervisors |
• Canonical Ubuntu Server LTS
• Citrix Hypervisor
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi
For specifications and interoperability details, see Dell.com/OSsupport. |
| OEM-ready version available |
From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit Dell.com/OEM. |
